Lightning Protection Equipment

Lightning Protection Equipment
Lightning Protection Equipment
Product Code : 07
Brand Name : LPI
Product Description

Owing to the tremendous support from our expert professionals, we are able to offer Lightning Protection Equipment. Premium quality components have been obtained from the trustworthy sources of the market for making these products. Owing to their high strength and sturdy construction, these products have the capability to sustain adverse effects of weather. These products are installed in different buildings for registering the count of lightening strikes received by lightening terminal. Lightning Protection Equipment is packed in special packaging material so as to determine its safe and secure transportation.

Other details:

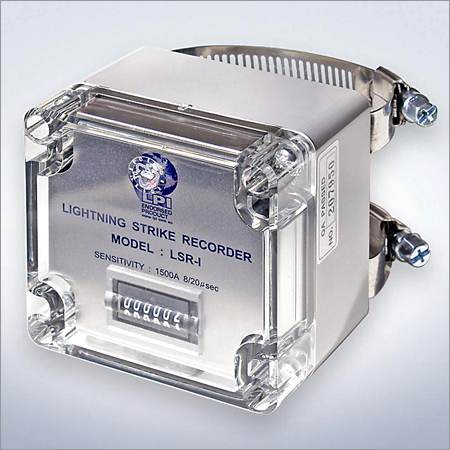

LPI Lightning Strike Recorder (LSR1) is a lightning event counter. The LSR1 is simply mounted at any location along the downconductor route. Its purpose is to record the number of strikes captured by the lightning terminal and conveyed by the downconductor. The LSR1 operates by sensing current by means of an inductive pick up loop. The loop passes along the inside surface of the bottom of the enclosure. With the voltage impulse detected by the current transformer (CT) a trigger to the pulse counter then turns the counter over to register the event. The Recorder is mounted in a polycarbonate enclosure rated IP 67.

Features

  • 6 Digits

  • Up to 999999 counts

  • Testable using LSR-Tester

Technical Data


Ordering Code

LSR1

Description:

Lightning Strike Recorder

Current sensitivity:

1500A 8/20 1/4s impulse

Operating range:

Min. 1500A and Max. 220kA 8/201/4s

Display

Mechanical 6 digits display (not re-settable).

Dimension:

80mm (B) x 82mm (H) x 65mm (D)

Weight:

0.4 kg

Mounting:

<>Adjustable stainless steel cable ties to accommodate a cable up to 40 mm
dia. cable or 50mm x 5mm flat tape

Construction:

Polycarbonate enclosure

Colour:

Light Grey

Environment:

IP 67 (IEC 529)

Operating Temperature:

-15oC to 65oC
